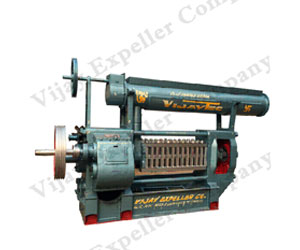

The machine is designed for Extra Heavy Duty Performance & High Production with maximum oil yield. The main Gear Box Body & Cone Body is made from graded quality cast iron.
The machine is equipped with Double Reduction, Heavy Duty, Self Lubricating Gear Box with six précised Helical Gears & Pinions. All the gears & pinions are made of MS & Alloy steel.
Main Worm Shaft can be withdrawn easily without disturbing the gear box and hence saves lot of time.
Our cutting edge technology in Perfect Alignment of the gear box, fitted with heavy duty Roller, Taper Roller & Spherical Thrust Bearings ensures friction free, noise free, low maintenance & less power consumption.
Worm assembly section comprising Pressure Worms, Cage/Lining bars, Discharge Rings & Collars are case hardened. The overall design of the machine, specially the gear box is so precise, simple & efficient that, it is very easy to operate.
The machine is suitable for crushing almost all type of Edible & Non Edible seeds.

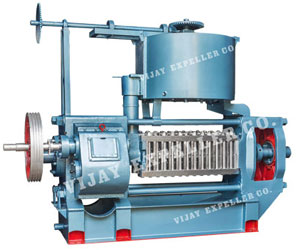

The Kettle is equipped with high steam jacket for proper cooking of seed. Long or Round kettle is provided as per customer requirements.
Model |
SIZE |
WEIGHT |
POWER REQ: |
CAPACITY : TON / 24 Hr |
|---|---|---|---|---|
VEC 60 |
55” x 11” x 9” |
7000 kgs |
100 HP – 960 rpm |
50 – 60 TPD |
VEC 50 |
48” x 9” |
6000 kgs |
75 HP – 960 rpm |
50 TPD |
VEC 40 |
48” x 8” |
5600 kgs |
60 HP – 960 rpm |
40 – 45 TPD |
VEC 35 |
48” x 7.5” |
5100 kgs |
60 HP – 960 rpm |
30 – 35 TPD |
VEC 25 |
48” x 7” |
5050 kgs |
50 HP – 960 rpm |
20 – 30 TPD |
VEC 20 |
48” x 6.5” |
5000 kgs |
50 HP – 960 rpm |
20 – 30 TPD |
The above series is also available in 44” straight & Taper chamber as per customer requirements.
|
||||
VEC 15 |
36” x 7” |
4600 kgs |
40 HP – 960 rpm |
12 – 15 TPD |
VEC 12 |
36” x 6.5” |
4600 kgs |
40 HP – 960 rpm |
11 – 13 TPD |
VEC 10 |
36” x 6” |
4500 kgs |
30 HP – 960 rpm |
08 – 10 TPD |
Note: Capacity differs with the density of the raw material & oil % in the seed.
Apart from the above mentioned sizes we manufacture customized sizes as per requirements.
Vijay machines get through certificates of CE,ISO,BV and oil report with some characteristic as below:
Vijay company provide good after-sale service: technology design; project installation and maintenance； training and warranty.
