Features

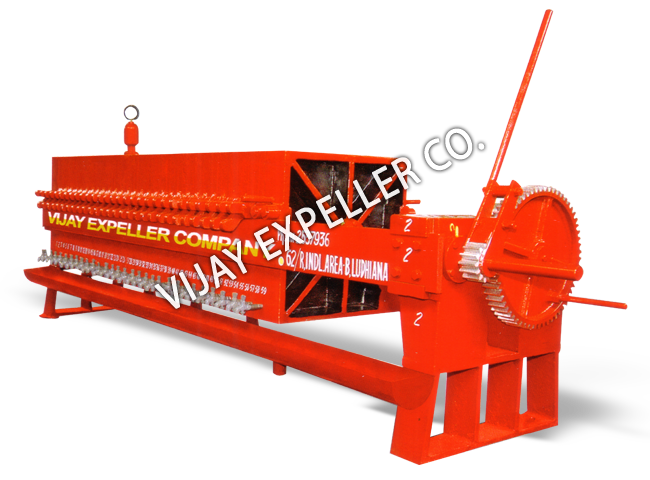

Oil Filter Press : A Filter press is highly efficient, compact, dewatering device for seperating solids from liquid slurries iin the form of compressed cake.

Our Filter Presses are designed and most efficient to give maximum filteration effeciency of purified liquids. the standard working pressure for filteration is upto 5kgs/sq. cm whereas our designed filter presses can work upto 10 kgs/sq. cm in 100-120 C degree temperature.

Tightening Arrangement : Opening & Closing is provided in both Ratchet System as well as on Hydraulic Cylinder operated.

Applications : Oil Mills, Solvent Plants, Rice Bran Plants, Sugar Mills, Fertilizer Industries, Chemical Industries, Textile, Ceramic Inductries, ETP Plants, Ferrous and Non- Ferrous Industries, Engine Oil manufacturing industries and many more.

Specifications & Technical Data

Size	Weight in Kgs.	Area in Sq. Mtrs.	Cap. in Ltrs.P/Day	H.P.Required	Size of Plunger Pump	Feeding Hole
36" x 36" x 36 Plates x 35 Frames	10000	55	50000	10	Centrifuga	Side
30" x 30" x 30 Plates x 29 Frames	6000	35	3000	5	80 mm	Side
24" x 24" x 24 Plates x 23 Frames	3000	16	12500	3	60 mm	Side
36" x 36" x 36 Plates Center Hole	8000	-	25000	5	80 mm	Center
30" x 30" x 30 Plates	4800	35	24000	3	80 mm	Center
24" x 24" x 30 Plates	2700	20	12500	3	60 mm	Center
24" x 24" x 24 Plates	2400	16	10000	3	60 mm	Center
18" x 18" x 18 plates	1100	7	6000	2	50 mm	Center
14" x 14" x 14 Plates	500	3	2500	1	50 mm	Center
12" x 12" x 12 Plates	380	2	1500	1	40 mm	Center

Filteration capacity depends upon the density of iumpurities in the oil & temperature of oil.
