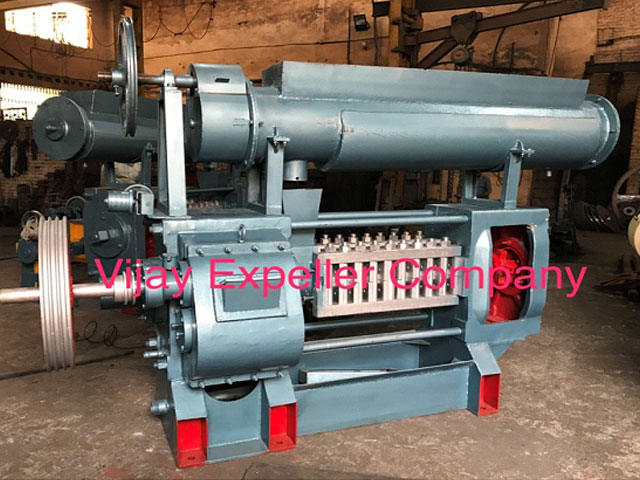

These medium capacity oil expellers are equipped with Heavy Duty Double Reduction Gear Box fitted with Six précised helical gears and alloy pinions. The base is made from channel.
Main Shaft can be withdrawn easily without disturbing the gear box and hence saves lot of time. Our cutting edge technology in perfect Alignment of the gear box fitted with roller, taper roller and thrust bearings ensure friction free, low maintenance & less power consumption.
The kettle is equipped with high steam jacket for proper cooking of seeds. Long and Round Kettle is provided as per customer requirements.
SIZE |
WEIGHT |
POWER REQ: |
CAPACITY : TON / 24 Hr |
---|---|---|---|
30” x 5.5” & 33” x 5.5” |
2700 kgs |
20 HP – 960 rpm |
5 – 7 TPD |
30” x 5” |
2500 kgs |
15 HP – 960 rpm |
4 – 6 TPD |
27” x 5” |
2400 kgs |
15 HP – 960 rpm |
4 – 6 TPD |
Note: Capacity differs with the density of the raw material & oil % in the seed.
