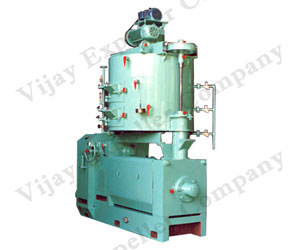

Features:

All Steel Fabrication and Improved Design

Steel Casted Chambers

Steel Casted Chamber is fitted Eliminating the difficult task of relining or replacing cage bars, frame bars etc.which saves lot of time and labour.

The main Shaft

Of the Expeller is made of alloy steel, fitted with High Pressure Worms, hard faced, with a highly wear resistant chromium cobalt alloy. The worm arrongement has been designed to expel the maximum oil from oil bearing seeds.

Shaft Withdrawal

The main worm shaft con be withdrawn very easily without disturbing the gear section in any way. Pressing worms and collars can be arranged without disturbing the main shaft.

Pressing Worm Assembly

High pressure Worms made from hard faced alloy steel are designed and arranged to extract maximum oil from the seeds.

Gear Box & Lubrication

It is equipped with tripple reduction helical gears made from single piece Alloy Steel Casting dipped in oil bath.All the shafts, gears, gudzeons etc. run on anti friction roller and ball bearings.A self contained lubrication arrangement has been provided.

The cake discharge

Thickness of the cake can be controlled on the running machine.

Cooker/Kettle

The steam Kettle is made of 48" Diameter with 3 high steam jackets.Standard accessories includes saftey valves,steam pressure guage, steam valves,steam traps, spray pipe.Cramer is also attached to give extra cramming to seeds while feeding in hopper.
